Druid components

Button

Basic Druid input component

• Button callback have next params: (self, params, button_instance)
  • self - Druid self context
  • params - Additional params, specified on button creating
  • button_instance - button itself
• You can set params on button callback on button creating: druid:new_button("node_name", callback, params). This params will pass in callback as second argument
• Button have next events:
  • on_click - basic button callback
  • on_repeated_click - repeated click callback, while holding the button, don't trigger if callback is empty
  • on_long_click - callback on long button tap, don't trigger if callback is empty
  • on_hold_click - hold callback, before long_click trigger, don't trigger if callback is empty
  • on_double_click - different callback, if tap button 2+ in row, don't trigger if callback is empty
• If you have stencil on buttons and you don't want trigger them outside of stencil node, you can use button:set_click_zone to restrict button click zone
• Button can have key trigger to use then by key: button:set_key_trigger

Text

Basic Druid text component

• Text component by default have auto adjust text sizing. Text never will be bigger, than text node size, which you can setup in GUI scene. It can be disabled on component creating by settings argument is_no_adjust to true

• Text pivot can be changed with text:set_pivot, and text will save their position inside their text size box:

Blocker

Druid component for block input

It can be used for block input in special zone.

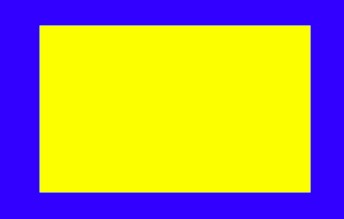

Example:

Blue zone is button with close_window callback

Yellow zone is blocker with window content

So you can do the safe zones, when you have the big buttons

Back Handler

Component to handle back button

It works on Android back button and Backspace. Key triggers in input.binding should be setup

Setup callback on back button with druid:new_back_handler(callback)

Lang text

Wrap on Text component to handle localization

• This is text druid component, using druid get_text_function to set text by it's id

Scroll

Basic Druid scroll component

Progress

Basic Druid progress bar component

Slider

Basic Druid slider component

• You can setup points of interests on slider via slider:set_steps. If steps are exist, slider values will be only from this steps (notched slider)

Input

Basic Druid text input component (unimplemented)

Checkbox

Basic Druid checkbox component

Checkbox group

Several checkboxes in one group

Radio group

Several checkboxes in one group with single choice

Timer

Handle timer work on gui text node

Grid

Component for manage node positions

Hover

System Druid component, handle hover node state
