Advanced Druid Setup

Input Bindings

By default, Druid uses all key names from Defold's default /builtins/input/all.input_binding for input bindings.

Druid requires the following input bindings:

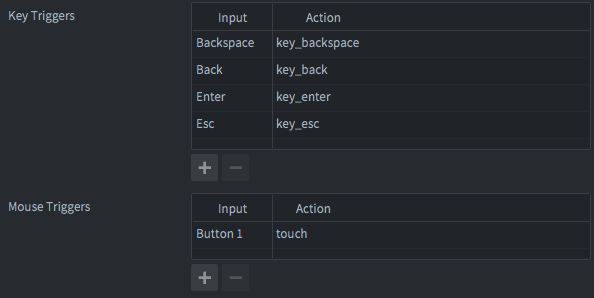

• Mouse trigger: Button 1 -> touch (for basic input components)
• Mouse trigger: Wheel up -> mouse_wheel_up (for Scroll component)
• Mouse trigger: Wheel down -> mouse_wheel_down (for Scroll component)
• Key trigger: Backspace -> key_backspace (for BackHandler component, input component)
• Key trigger: Back -> key_back (for BackHandler component, Android back button, input component)
• Key trigger: Enter -> key_enter (for Input component, optional)
• Key trigger: Esc -> key_esc (for Input component, optional)
• Key trigger: Left -> key_left (for Rich Input component, optional)
• Key trigger: Right -> key_right (for Rich Input component, optional)
• Key trigger: Shift -> key_lshift (for Rich Input component, optional)
• Key trigger: Ctrl -> key_lctrl (for Rich Input component, optional)
• Key trigger: Super -> key_lsuper (for Rich Input component, optional)

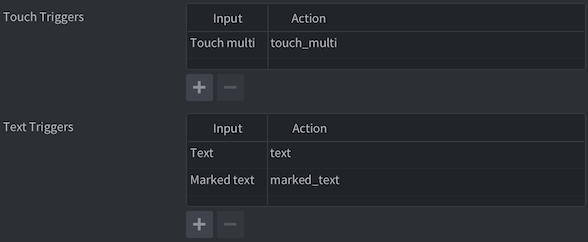

• Touch triggers: Touch multi -> touch_multi (for Scroll component)

Changing Key Bindings

If you need to use your own key bindings or key names, you can modify them in your game.project file.

Here are the default values for key bindings:

[druid]
input_text = text
input_touch = touch
input_marked_text = marked_text
input_key_esc = key_esc
input_key_back = key_back
input_key_enter = key_enter
input_key_backspace = key_backspace
input_multitouch = touch_multi
input_scroll_up = mouse_wheel_up
input_scroll_down = mouse_wheel_down
input_key_left = key_left
input_key_right = key_right
input_key_lshift = key_lshift
input_key_lctrl = key_lctrl
input_key_lsuper = key_lsuper

Input Capturing

By default, Druid automatically captures input focus if any input component is created. Therefore, you do not need to call msg.post(".", "acquire_input_focus").

If you do not require this behavior, you can disable it by setting the druid.no_auto_input field in the game.project file:

[druid]
no_auto_input = 1

Code Bindings

Adjust Druid settings as needed:

local druid = require("druid.druid")

-- Used for button component and custom components
-- The callback should play the sound by name: function(sound_id) ... end
druid.set_sound_function(function(sound_id)
    -- sound_system.play(sound_id)
end)

-- Used for lang_text component
-- The callback should return the localized string by locale ID: function(locale_id) ... end
druid.set_text_function(function(locale_id)
	-- return lang.get(locale_id)
end)

-- Used to change the default Druid style
druid.set_default_style(your_style)

-- Call this function when the language changes in the game,
-- to retranslate all lang_text components:
local function on_language_change()
    druid.on_language_change()
end

-- Call this function inside window.set_listener
-- to capture game focus lost/gained callbacks:
-- window.set_listener(function(self, event, data) druid.on_window_callback(event, data) end))
local function on_window_callback(self, event, data)
    druid.on_window_callback(event)
end
window.set_listener(on_window_callback)
