Druid Scroll Component

Description

The Scroll component handles scrollable content in your UI. It consists of two main parts: a static view node that captures user input, and a dynamic content node that moves in response to user interaction.

Features

Horizontal and vertical scrolling
Inertial scrolling with customizable friction
Points of interest for snap-to-position scrolling
Scroll-to-position and scroll-to-percent functions
Mouse wheel support
Stretch effect for overscrolling
Grid binding for automatic content size adjustment

Basic Usage

local scroll = self.druid:new_scroll("view_node", "content_node")

Parameters

view_node: The node or node_id of the static view part (captures input)
content_node: The node or node_id of the dynamic content part (moves when scrolling)

Setup

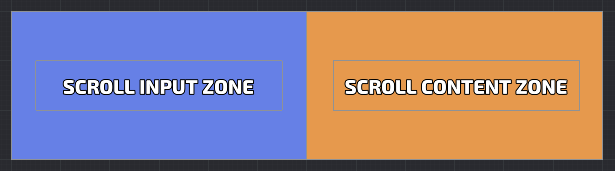

The typical setup involves placing a view_node and adding a content_node as its child:

The view_node captures user input and defines the visible area, while the content_node contains all the scrollable content and moves in response to user interaction.

Methods

-- Scroll to a specific position
scroll:scroll_to(vmath.vector3(100, 200, 0), false) -- Animated scroll
scroll:scroll_to(vmath.vector3(100, 200, 0), true)  -- Instant scroll

-- Scroll to a percentage of the content
scroll:scroll_to_percent(vmath.vector3(0.5, 0.5, 0), false) -- Scroll to middle

-- Get current scroll percentage
local percent = scroll:get_percent()

-- Set content size
scroll:set_size(vmath.vector3(500, 1000, 0))

-- Update view size if it changes
scroll:update_view_size()

-- Enable/disable inertial scrolling
scroll:set_inert(true)
scroll:set_inert(false)

-- Set points of interest for snap-to-position scrolling
scroll:set_points({
    vmath.vector3(0, 0, 0),
    vmath.vector3(0, 200, 0),
    vmath.vector3(0, 400, 0)
})

-- Scroll to a specific point of interest
scroll:scroll_to_index(2)

-- Enable/disable horizontal or vertical scrolling
scroll:set_horizontal_scroll(true)
scroll:set_vertical_scroll(true)

-- Check if a node is visible in the scroll view
local is_visible = scroll:is_node_in_view(node)

-- Bind a grid to automatically adjust scroll size
scroll:bind_grid(grid)

Events

-- Subscribe to scroll movement
scroll.on_scroll:subscribe(function(self, position)
    print("Scroll position: " .. position.x .. ", " .. position.y)
end)

-- Subscribe to scroll_to events
scroll.on_scroll_to:subscribe(function(self, target, is_instant)
    print("Scrolling to: " .. target.x .. ", " .. target.y)
end)

-- Subscribe to point scroll events
scroll.on_point_scroll:subscribe(function(self, index, point)
    print("Scrolled to point: " .. index)
end)

Notes

The scroll component has customizable style parameters for friction, inertia, and stretch effects
By default, scroll has inertia and a stretching effect, which can be adjusted via style settings
You can set up "points of interest" to make the scroll always center on the closest point
When using a stencil node with the scroll, buttons inside the scroll may be clickable outside the stencil bounds. Use button:set_click_zone(scroll.view_node) to restrict button clicks to the visible area
The scroll component automatically detects the closest stencil node and sets it as the click zone if none is specified
Mouse wheel scrolling is supported and can be customized or disabled via style settings
